Protector Removal Note

CAUTION:

Be careful not to damage the fuel tank when removing the rivet. If the fuel tank is damaged, it may cause fuel leakage.

NOTE:

When reinstalling the rivet, install the same rivet or M5 bolt and nut.

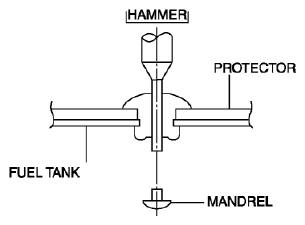

Push out the mandrel using a hammer and punch (2-2.8 mm {0.08-0.11 in} diameter).

Fig 1: Pushing Out Mandrel Using Hammer And Punch
Courtesy of MAZDA MOTORS CORP.

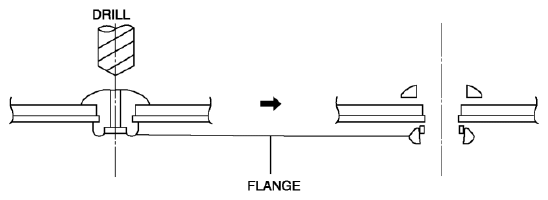

Remove the flange using a drill (5 mm {0.20 in} drill bit).

Fig 2: Removing Flange Using Drill
Courtesy of MAZDA MOTORS CORP.
