HVAC Basic System Location Index

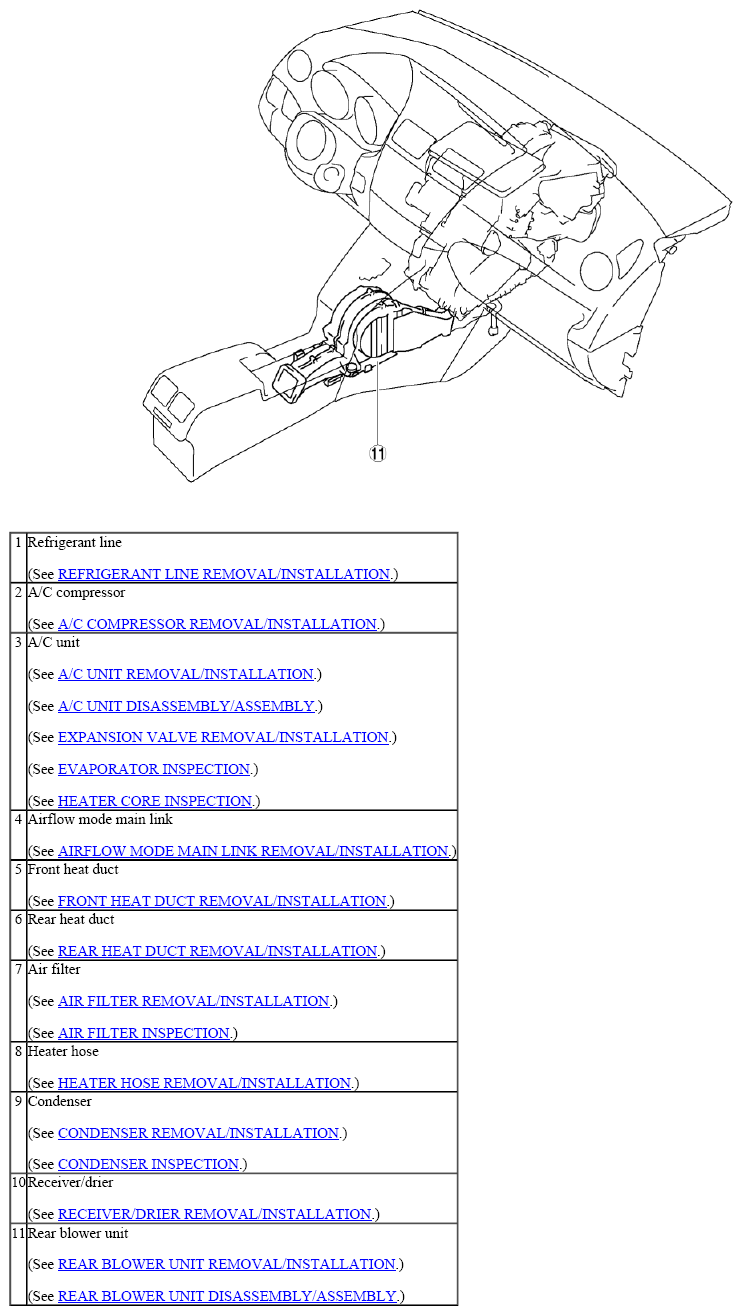

Fig 1: Identifying HVAC Basic System Related Components (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

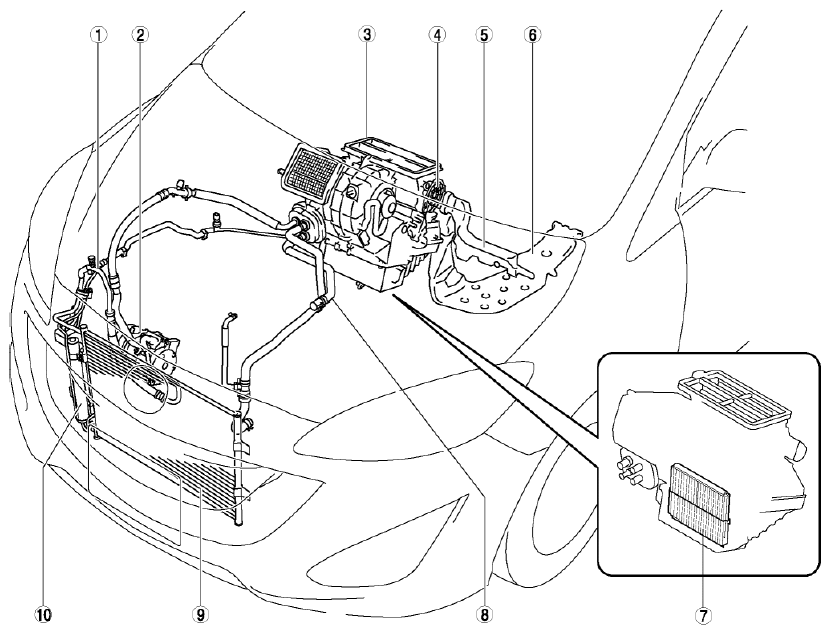

Fig 2: Identifying HVAC Basic System Related Components (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
