Locking Connector
When locking connectors, listen for a click indicating they are securely locked.

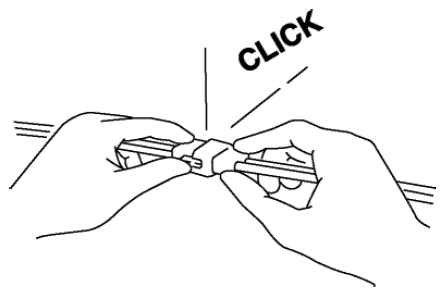

Fig 1: Locking Connector
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
