Drive Plate Removal/Installation: Notes

  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove in the order shown below.
  3. Install in the reverse order of removal.

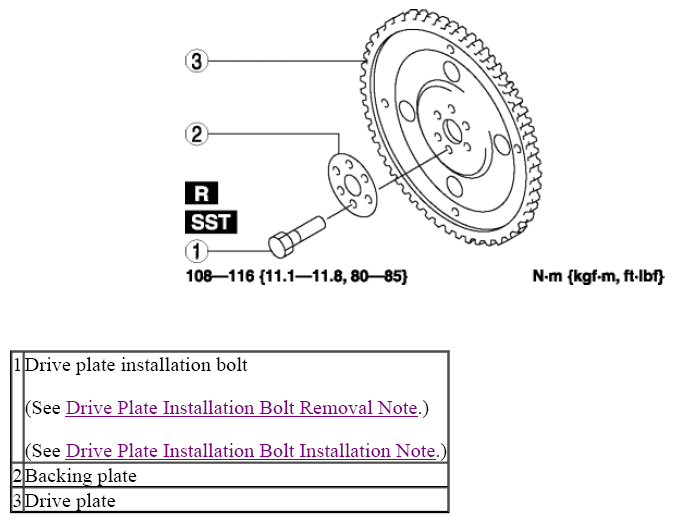

Fig 1: Drive Plate Installation Bolt, Backing Plate And Drive Plate With Torque Specification
G08152156Courtesy of MAZDA MOTORS CORP.
