On-Vehicle Inspection

Disconnect the input/turbine speed sensor connector.
1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
2. Disconnect the negative battery cable.
3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
4. Disconnect the input/turbine speed sensor connector.

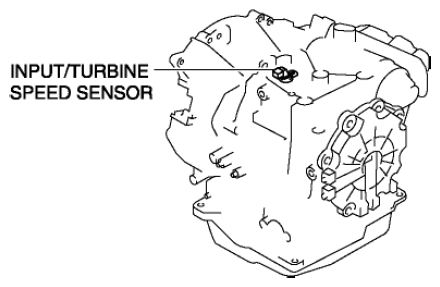

  Fig 1: Identifying Input/Turbine Speed Sensor
  Courtesy of MAZDA MOTORS CORP.
Measure resistance between input/turbine speed sensor terminals A and B.

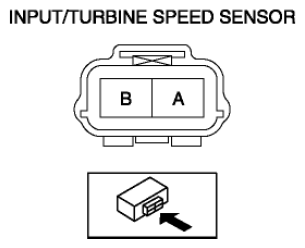

Fig 2: Identifying Input/Turbine Speed Sensor Connector Terminals
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the input/turbine speed sensor. (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION .)
  Input/turbine speed sensor resistance
- 250-600 ohms
