Selector Cable (Selector Lever Side) Installation Note

Securely install the selector cable (selector lever side) to the selector lever.
Install the selector cable (selector lever side) to the selector lever pin and temporarily tighten the nut.
Install the selector cable end (selector lever side) to the selector lever pin, and temporarily tighten the nut.
Verify that the selector lever pin end is out of the nut.

Fig 1: Identifying Selector Lever Pin, Nut And Selector Cable
Courtesy of MAZDA MOTORS CORP.
Verify that the manual shaft is in the P position.

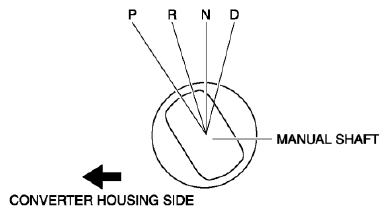

Fig 2: Identifying Manual Shaft In P Position
Courtesy of MAZDA MOTORS CORP.
Completely tighten the nut of the selector cable (selector lever side) end. At this time, do not touch the selector lever component rod.

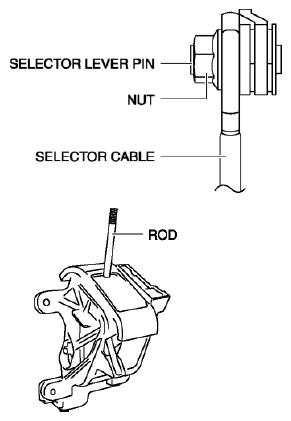

Fig 3: Identifying Selector Lever Pin, Nut, Rod And Selector Cable
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the nut is tightened with the selector lever component rod loaded, it could cause a selector cable adjustment malfunction.
  Tightening torque
- 10-15 N.m {102-152 kgf.cm, 89-132 in.lbf}
