Selector Lever Component Removal/Installation

CAUTION:
  • Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable.
  3. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  4. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
  5. Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
  6. Remove the selector lever knob.

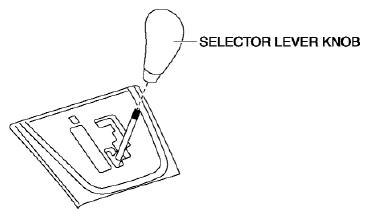

    Fig 1: Identifying Selector Lever Knob
    G08150772Courtesy of MAZDA MOTORS CORP.
  7. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  8. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  9. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  10. Remove the rear blower unit. (See REAR BLOWER UNIT REMOVAL/INSTALLATION .)
  11. Remove in the order shown below.
  12. Install in the reverse order of removal.
  13. Inspect the selector lever. (See SELECTOR LEVER INSPECTION .)

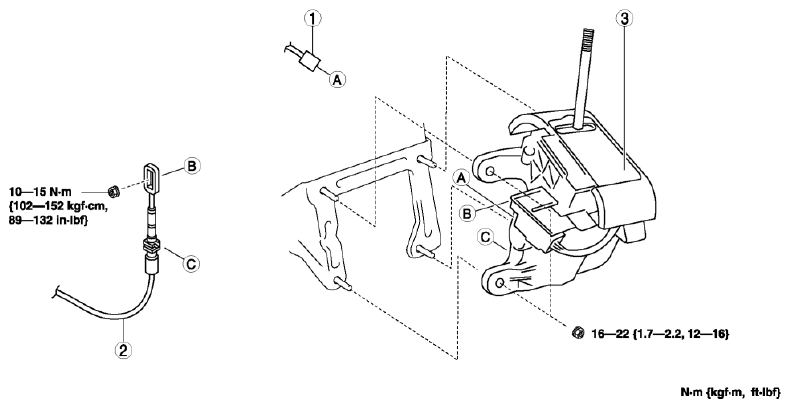

    Fig 2: Selector Lever Related Replacement Components With Torque Specifications
    G08150773Courtesy of MAZDA MOTORS CORP.
