Key Interlock Solenoid Inspection

CAUTION:

Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.

Disconnect the key interlock solenoid connector.
1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
2. Disconnect the negative battery cable.
3. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
4. Disconnect the key interlock solenoid connector.

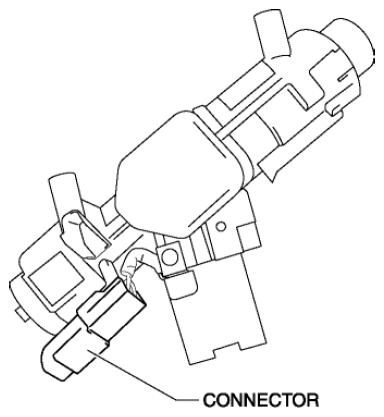

  Fig 1: Identifying Key Interlock Solenoid Connector
  Courtesy of MAZDA MOTORS CORP.
Measure the resistance between the key interlock solenoid terminals A and B.

Fig 2: Key Interlock Solenoid Connector Terminals Identification
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the steering lock. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  Key Interlock Solenoid Resistance
- 32.4-39.6 ohm
