Front Door Quarter Glass Removal/Installation

Fully open the front door glass.
Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

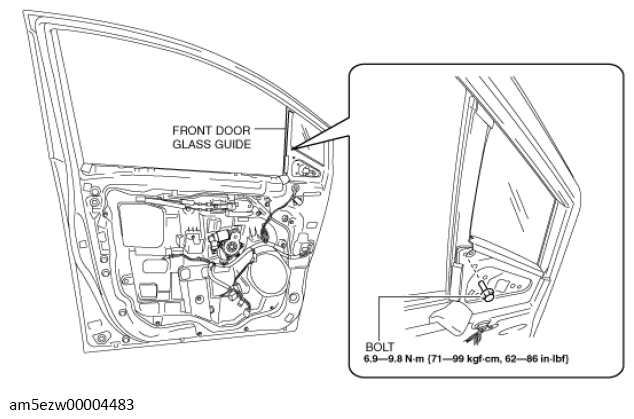

Remove the bolt.

Fig 1: Front Door Glass Guide Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

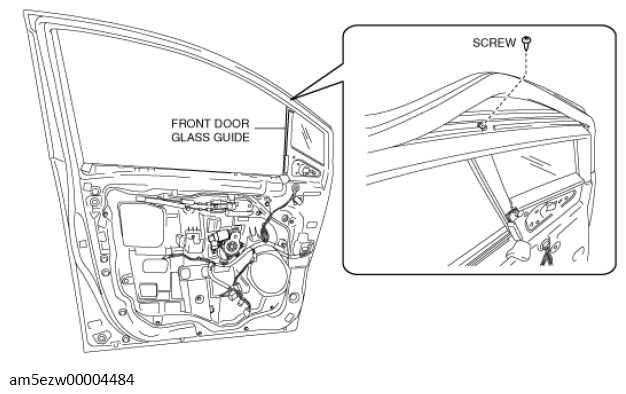

Remove the screw.

Courtesy of MAZDA MOTORS CORP.

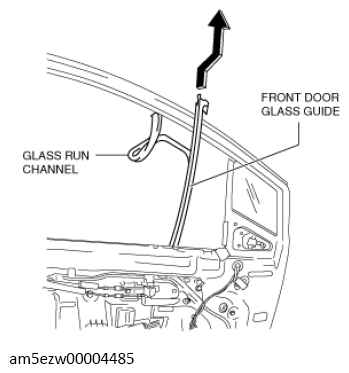

Remove the front door glass guide and glass run channel as a single unit.

Courtesy of MAZDA MOTORS CORP.

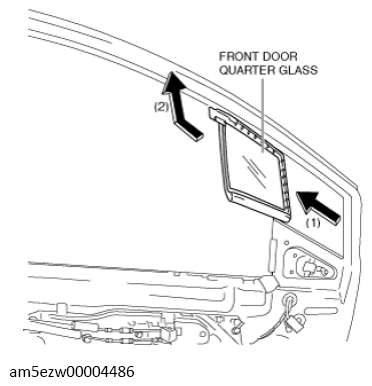

Remove the front door quarter glass.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
