Quarter Window Glass Removal: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear package tray lid (See REAR PACKAGE TRAY LID REMOVAL/INSTALLATION .)
    2. Sub trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    4. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    5. Rear header trim (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
    6. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    7. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    8. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
    9. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    10. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    11. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    12. Center guide rail cover (See CENTER GUIDE RAIL COVER REMOVAL/INSTALLATION .)

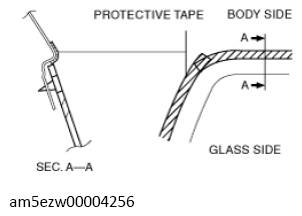

  3. Apply protective tape along the edge of the body and the quarter window glass.
G13727996Courtesy of MAZDA MOTORS CORP.
