Rear Power Window Regulator Removal/Installation

  1. Fully open the sliding door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
    4. Sliding door quarter glass (See SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
    5. Sliding door glass (See SLIDING DOOR GLASS REMOVAL/INSTALLATION .)
    6. Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
  4. Remove the nuts.

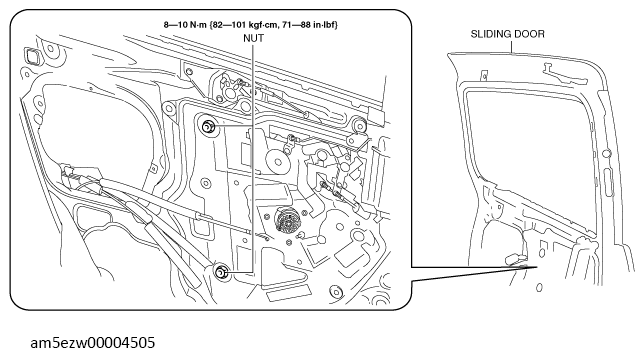

    Fig 1: Sliding Door Nuts With Torque Specification
    G13728002Courtesy of MAZDA MOTORS CORP.

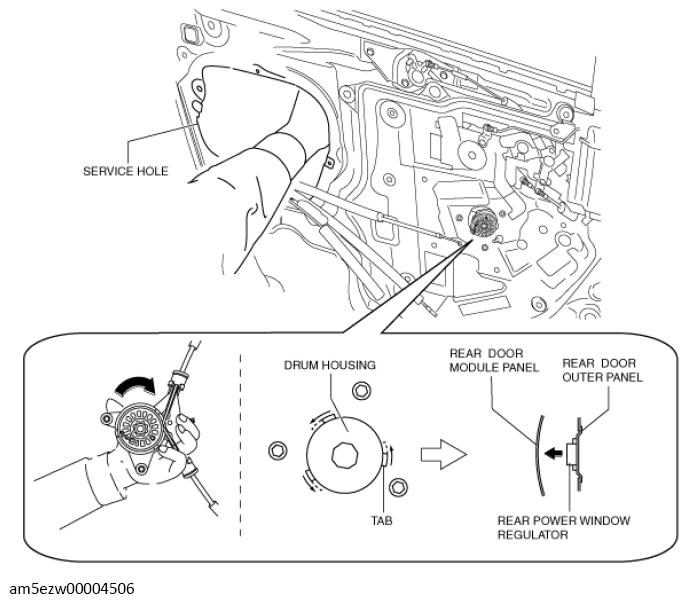

  5. Insert a hand through the service hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module panel.
    G13728003Courtesy of MAZDA MOTORS CORP.

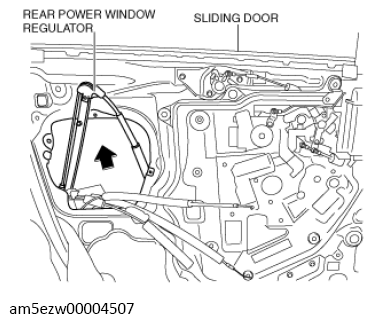

  6. Take the rear power window regulator out through the service hole.
    G13728004Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
    CAUTION:
    • Make sure the cable does not unspool from the drum housing when installing.
