Battery Box Installation Note

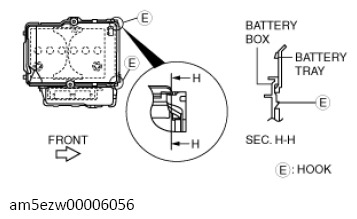

  1. Assemble with battery box hooks E aligned with the battery tray holes at two points.
G13726813Courtesy of MAZDA MOTORS CORP.
