Generator Removal/Installation: Notes
WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.
- When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.
CAUTION:
- The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct and generator heat insulator is installed securely.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove the aerodynamic under cover and splash shield as a single unit. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .) (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)

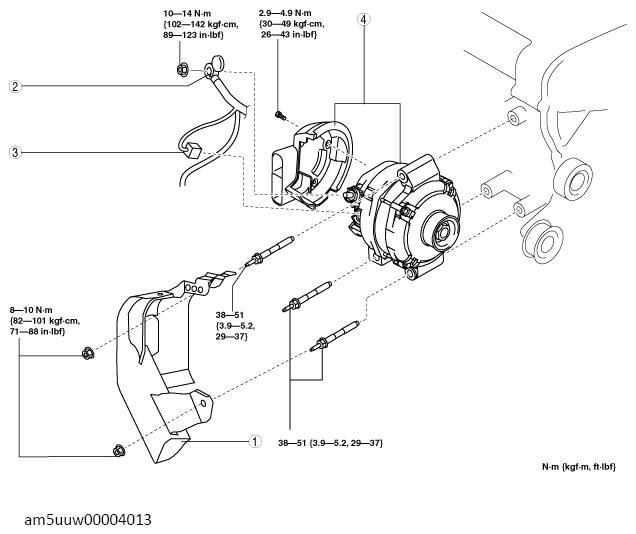

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
PART DESCRIPTION
| 1 | Generator duct (See GENERATOR DUCT REMOVAL NOTE .) |
| 2 | Terminal B cable |
| 3 | Generator connector |
| 4 | Generator and generator heat insulator (See GENERATOR AND GENERATOR HEAT INSULATOR REMOVAL NOTE .) (See GENERATOR AND GENERATOR HEAT INSULATOR INSTALLATION NOTE .) |
