Starter Interlock Switch Inspection
CAUTION:
- Do not reuse the starter interlock switch if it is removed from the vehicle even once. Replace with a new starter interlock switch when installing.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)

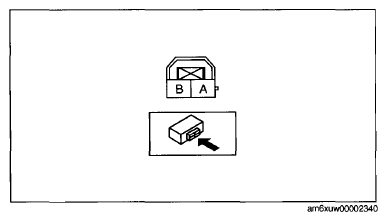

- Disconnect the starter interlock switch connector.

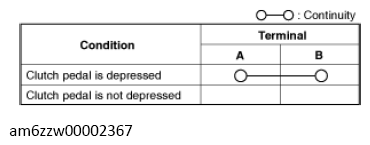

- Verify that the continuity is as indicated in the table using a tester.
- If the continuity is not as indicated in the table, replace the starter interlock switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
