Knock Sensor (KS) Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  5. Disconnect the KS connector.
  6. Remove the KS.

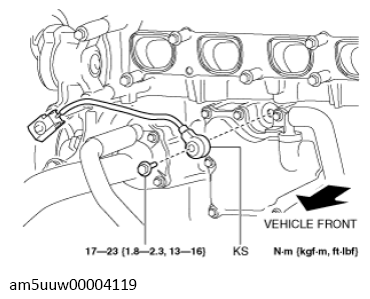

    Fig 1: Knock Sensor Bolt With Torque Specification
    G13726886Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
