Protector Removal Note
CAUTION:
- Be careful not to damage the fuel tank when removing the rivet. If the fuel tank is damaged, it may cause fuel leakage.
NOTE:
- When reinstalling the rivet, install the same rivet or M5 bolt and nut.
- Push out the mandrel using a hammer and punch (2-2.8 mm {0.08-0.11 in} diameter).

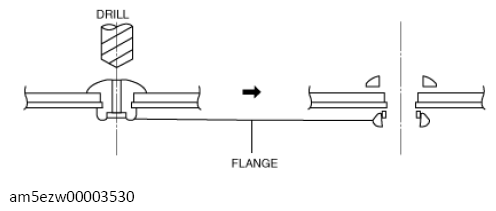

- Remove the flange using a drill (5 mm {0.20 in} drill bit).
