Front Door Glass Removal/Installation

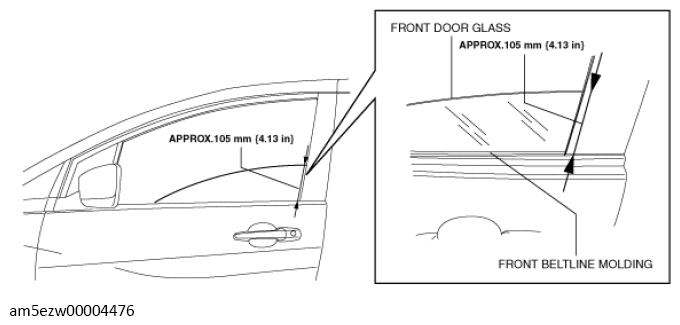

To access the glass installation bolts, adjust the position of the front door glass so that the height of the front door glass towards the rear is approx. 105 mm {4.13 in}.

Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery cable.
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

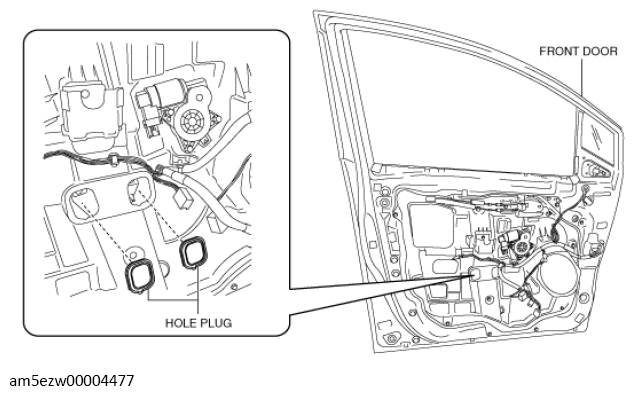

Remove the hole plug.

Courtesy of MAZDA MOTORS CORP.

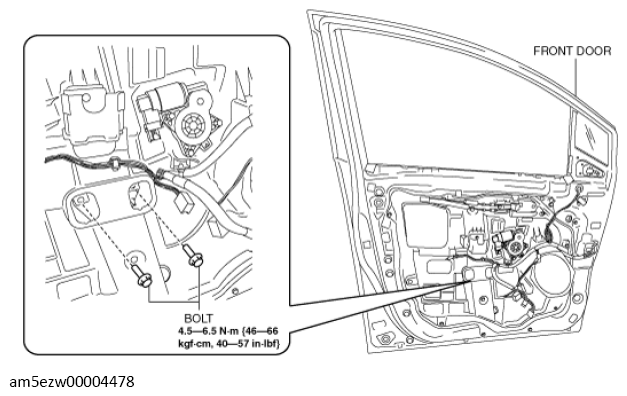

Remove the bolts.

Fig 1: Front Door, Hole Plug And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

CAUTION:

Courtesy of MAZDA MOTORS CORP.

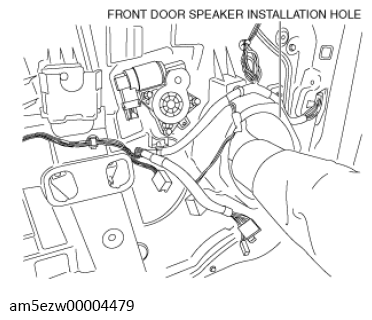

If the bolts are removed without supporting the front door glass, the front door glass may fall off and be damaged. Remove the bolts while inserting your hand into the front door speaker installation hole to support the front door glass.

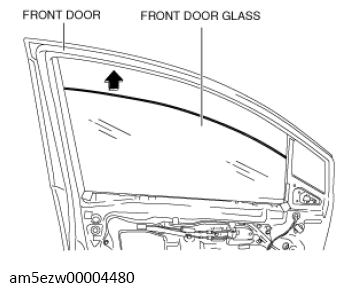

Lift the front door glass in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.

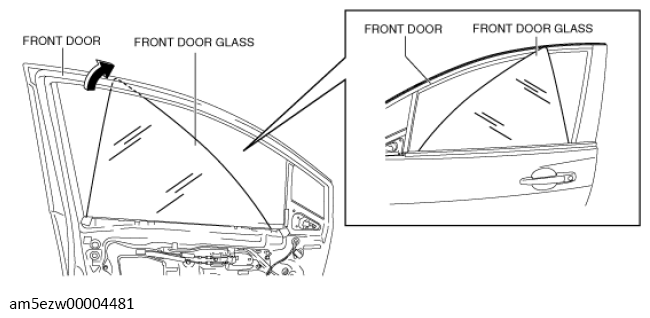

Tilt the front door glass in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.

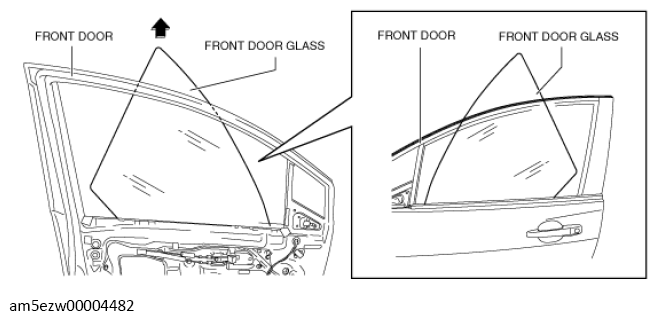

Remove the front door glass in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
CAUTION:
- If the bolts are installed without supporting the front door glass, the front door glass may fall off and be damaged. When installing the front door glass, align the glass edge with the front door glass guide by hand through the speaker installation hole, and then install the bolts.
