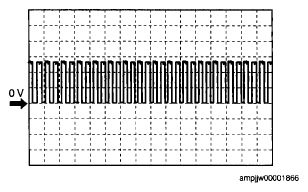

A/F sensor heater control

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2A (+)-body ground (-)

Oscilloscope setting

• 5 V/DIV (Y), 200 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)
