Power Outer Mirror Switch Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)

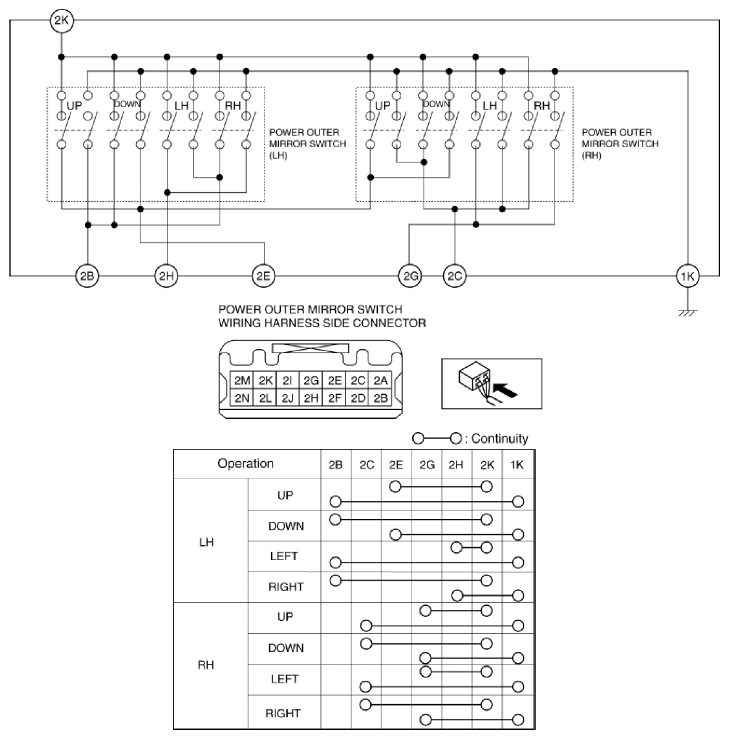

- Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
