Rear Window Glass Removal

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the following parts:
1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
2. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
4. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
5. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
6. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)

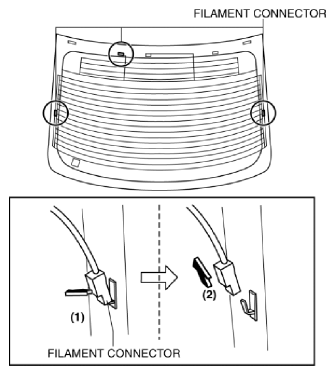

Disconnect the filament connectors in the direction of the arrow in the order of (1), (2) shown in the figure.

Fig 1: Disconnecting Filament Connectors
Courtesy of MAZDA MOTORS CORP.
Apply protective tape along the edge of the body.

Fig 2: Identifying Body Edge Protective Tape Applying Area
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Overlap and adhere the protective tape to the corners to prevent damage.
Remove the rear windshield molding by pulling it outward.
NOTE:
- If the rear windshield molding is difficult to remove, warm the windshield molding using a hot air blower.

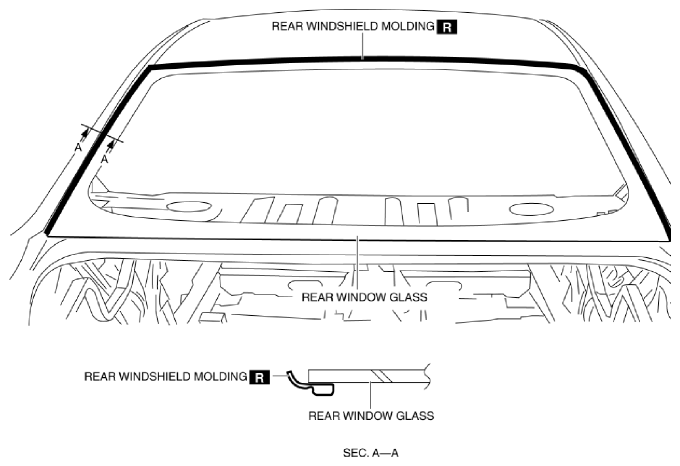

Fig 3: Identifying Rear Window Glass And Rear Windshield Molding Area
Courtesy of MAZDA MOTORS CORP.
Remove the rear windshield molding by pulling it outward.
NOTE:
- If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.
Fig 4: Identifying Rear Window Glass And Rear Windshield Molding Area
Courtesy of MAZDA MOTORS CORP.
Avoiding the pin on the inside of the vehicle, insert piano wire which has been cut to sufficient length.

Fig 5: Inserting Piano Wire
Courtesy of MAZDA MOTORS CORP.
WARNING:
1. Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.
NOTE:
- Before removing the rear window glass from the body, mark the position of the glass by affixing tape to the glass and body panel.
Wind each end of piano wire around a bar.
NOTE:
- Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.
Secure one end of piano wire, and while pulling the other end, cut the sealant around the rear window glass.

Fig 6: Cutting Sealant Around Rear Window Glass
Courtesy of MAZDA MOTORS CORP.
Pinch pins from the inside of the vehicle and detach it.

Fig 7: Identifying Vehicle Pins
Courtesy of MAZDA MOTORS CORP.
Remove the rear window glass.
