Fuel pump control signal

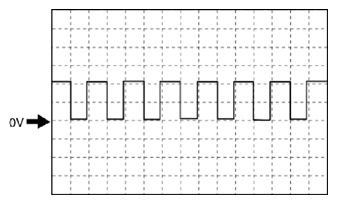

Fig 1: Fuel Pump Control Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2AE(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
