Joint Hose Installation Note

  1. Install the joint hose as shown in the figure.

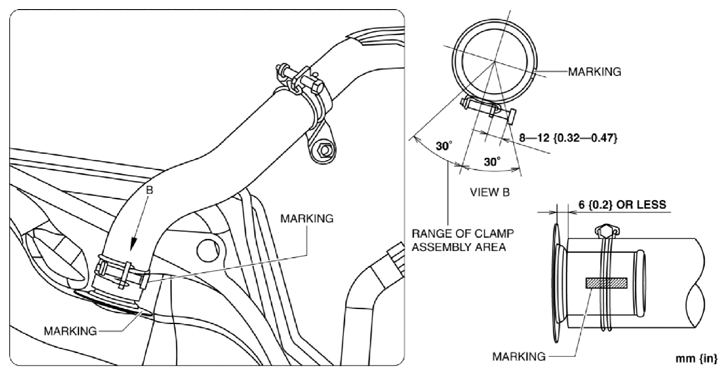

Fig 1: Installing Joint Hose (Fuel Tank Side)
G10985394Courtesy of MAZDA MOTORS CORP.

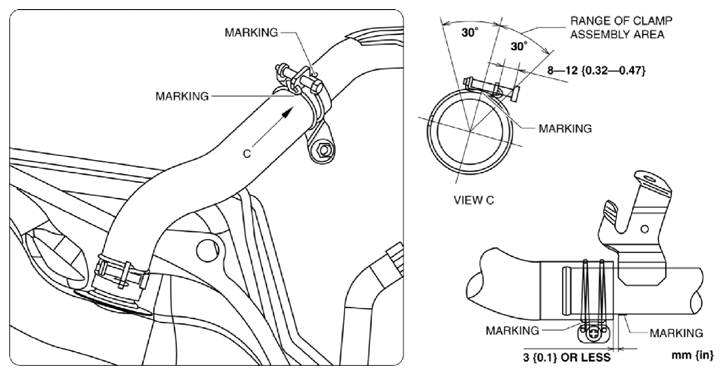

Fig 2: Installing Joint Hose (Fuel-Filler Pipe Side)
G10985395Courtesy of MAZDA MOTORS CORP.
