Inspection Using an Oscilloscope (Reference)

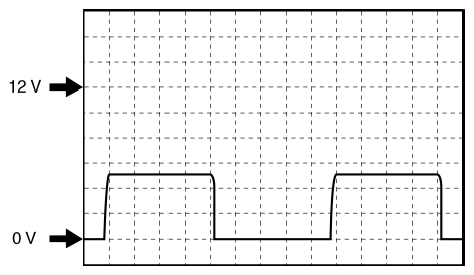

Fig 1: Power Window Main Switch Voltage Wave Pattern

G10987521

Courtesy of MAZDA MOTORS CORP.

Terminal:
2D, 2F(+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
