Power Window Main Switch Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the cover.

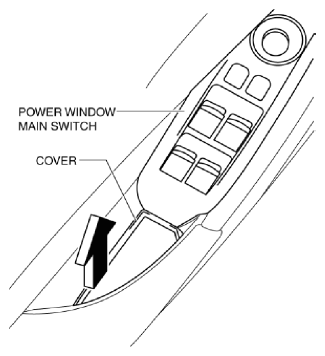

Fig 1: Disconnecting Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver shown in the figure and remove the tab A in the direction of arrow (1).

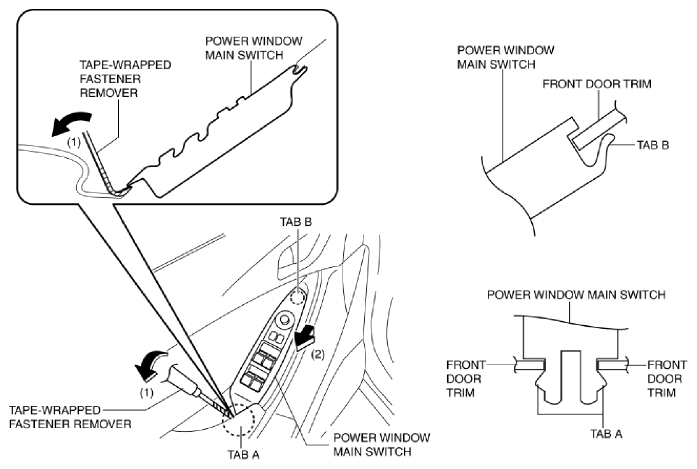

Fig 2: Removing Power Window Main Switch Tab
Courtesy of MAZDA MOTORS CORP.
Slide the power window main switch in the direction of the arrow (2) shown in the figure and remove the tab B.
Disconnect the power window main switch connector.
Pull the edge of power window main switch cover in the direction of arrow (1) and detach tabs.

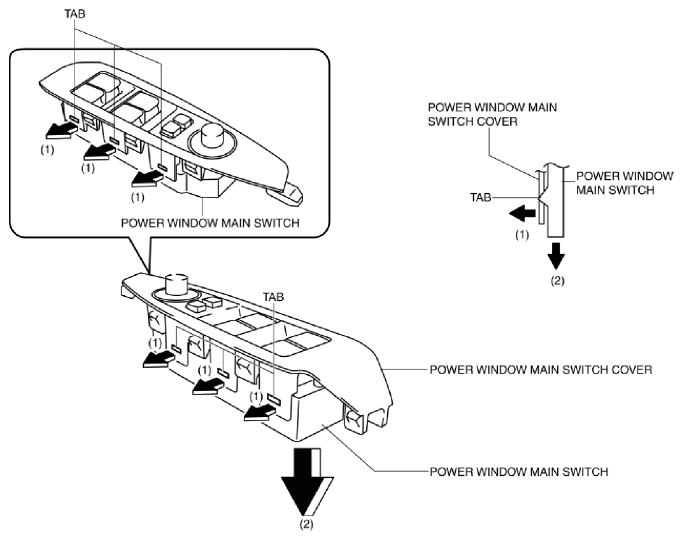

Fig 3: Pulling Out Power Window Main Switch Cover Edge
Courtesy of MAZDA MOTORS CORP.
Remove the power window main switch in the direction of arrow (2) shown in the figure.
Install in the reverse order of removal.
