Power Window SUBSWITCH Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)

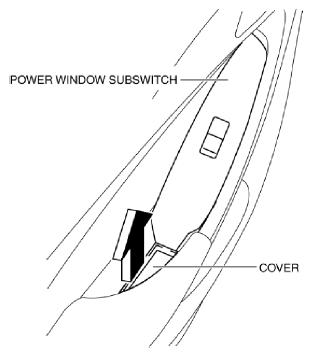

Remove the cover.

Fig 1: Removing Power Window Subswitch Cover
Courtesy of MAZDA MOTORS CORP.

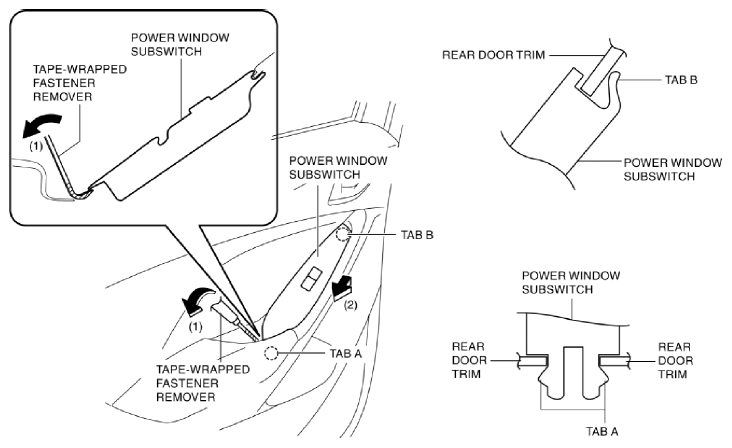

Insert a tape-wrapped flathead screwdriver shown in the figure and remove the tab A in the direction of arrow (1).

Fig 2: Removing Power Window Subswitch Tab
Courtesy of MAZDA MOTORS CORP.
Slide the power window subswitch in the direction of the arrow (2) shown in the figure and remove the tab B.
Disconnect the power window subswitch connector.

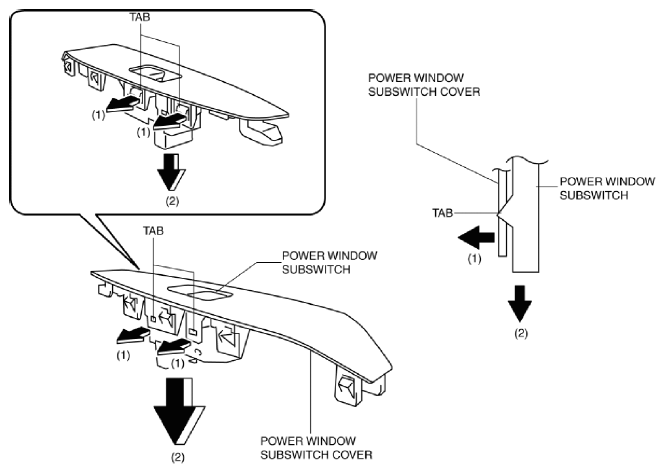

Pull the edge of power window subswitch cover in the direction of arrow (1) and detach the tabs.

Fig 3: Pulling Out Power Window Subswitch Cover Edge
Courtesy of MAZDA MOTORS CORP.
Remove the power window subswitch in the direction of arrow (2) shown in the figure.
Install in the reverse order of removal.
