Dynamic Stability Control Location Index

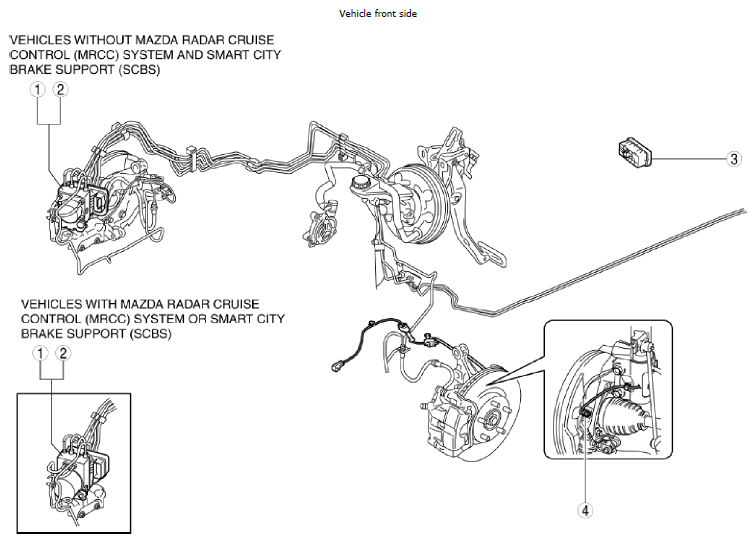

Fig 1: Front ABS Wheel-Speed Sensor (Vehicle Front Side)

G10986017

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .) (See dsc hu/cm inspection .)
2	Brake fluid pressure sensor (built-into DSC HU/CM) (See BRAKE FLUID PRESSURE SENSOR INSPECTION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
3	DSC OFF switch (See DSC OFF SWITCH removal/installation .) (See DSC OFF SWITCH inspection .)
4	Front ABS wheel-speed sensor (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See FRONT ABS WHEEL-SPEED SENSOR INSPECTION .)

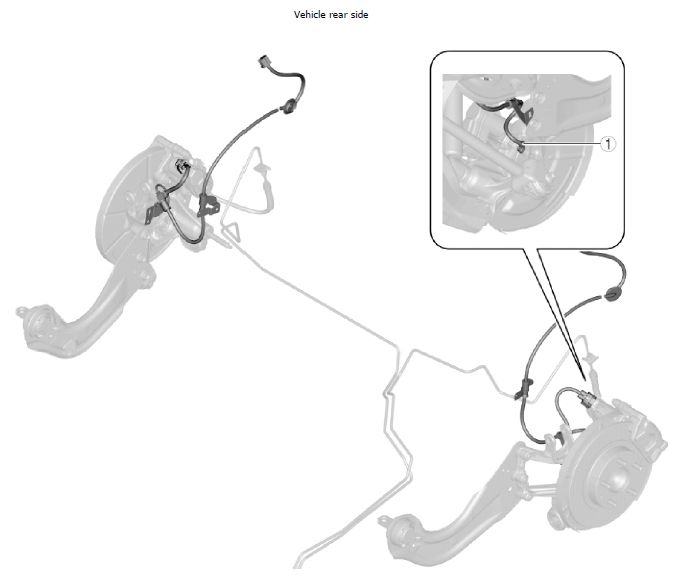

Fig 2: Rear ABS Wheel-Speed Sensor (Vehicle Rear Side)

G10986018

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION .)
