A/F Sensor Inspection
- Connect the M-MDS to the DLC-2.
- Switch the ignition ON (engine on).
- Warm up the engine to normal operating temperature.
- Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST
.)
- VSS (Vehicle speed)
- RPM (Engine speed)
- O2S11 (A/F sensor output current)
- Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3, 000 rpm or more
.
- Verify that the A/F sensor output current (PID: O2S11) is 0.25 mA or more

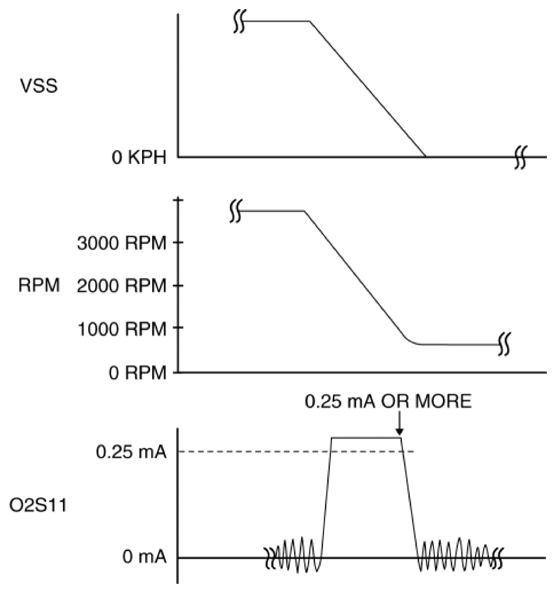

while decelerating as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
