Water Pipe Installation Note

  1. Assemble the water pipe so that the stud bold is inserted between section A.

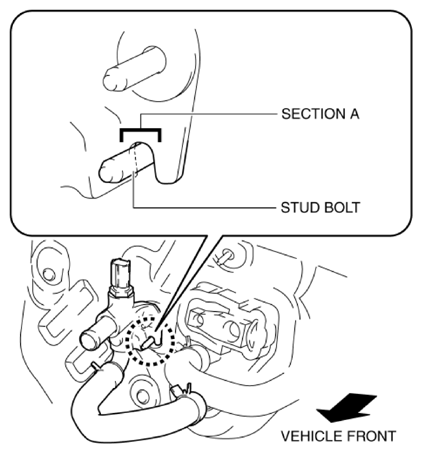

Fig 1: Assembling Water Pipe Stud Bolt
G10985616Courtesy of MAZDA MOTORS CORP.
