Back-up Ring Installation Note

Install the back-up ring, making sure it is installed in the right direction.

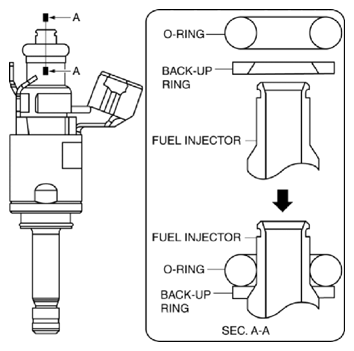

Fig 1: Installing Back-Up Ring
Courtesy of MAZDA MOTORS CORP.
After installing the back-up ring, verify that it is installed correctly.

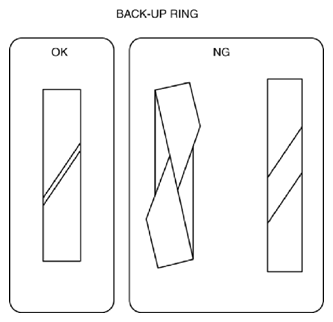

Fig 2: Identifying Back-Up Ring Correct And Incorrect Position

Courtesy of MAZDA MOTORS CORP.
