Fuel Distributor Installation Note

Install the fuel distributor to the fuel injectors while aligning the projection of the spacer to the notch of the fuel distributor.

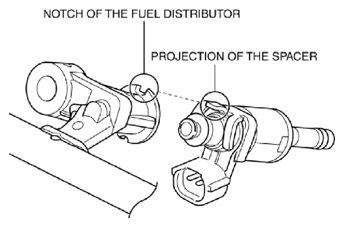

Fig 1: Installing Fuel Distributor To Fuel Injectors
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the fuel distributor installation bolts until their heads contact the fuel distributors.
Turn the fuel distributor installation bolts a half a turn in the order shown in the figure.

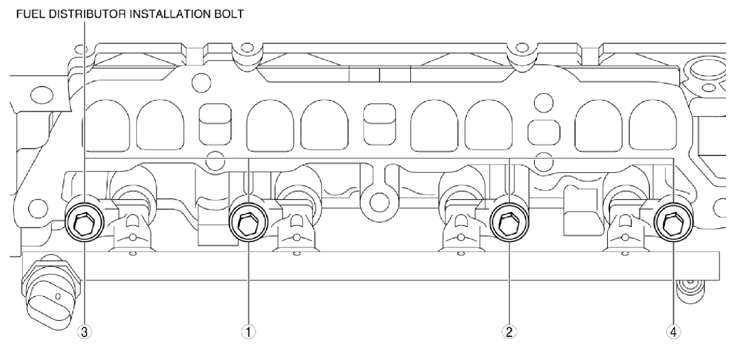

Fig 2: Fuel Distributor Installation Bolts Tightening Order
Courtesy of MAZDA MOTORS CORP.
Turn the fuel distributor installation bolts another half a turn in the order shown in the figure (one turn including the half turn in Step 3).
Tighten the fuel distributor installation bolts in the order shown in the figure.
Fuel distributor installation bolt tightening torque
- 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
