Continuity Inspection

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the fuel pump unit connector.
  3. Inspect for continuity between fuel pump unit terminals A-B.

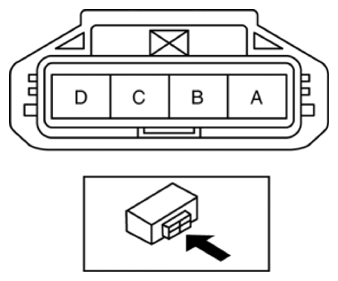

    Fig 1: Identifying Fuel Pump Unit Connector Terminals
    G10985407Courtesy of MAZDA MOTORS CORP.
