Rear Housing Installation Note
NOTE:
- After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

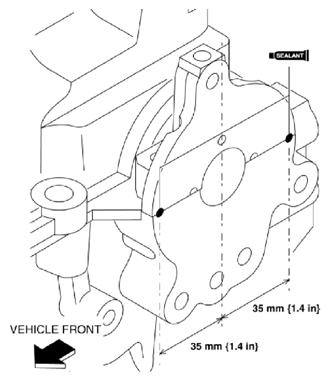

- Apply silicone sealant to the areas shown in the figure.
Thickness
- 3.0-7.0 mm {0.12-0.27 in}
- Install the rear housing.
