Ignition System Location Index

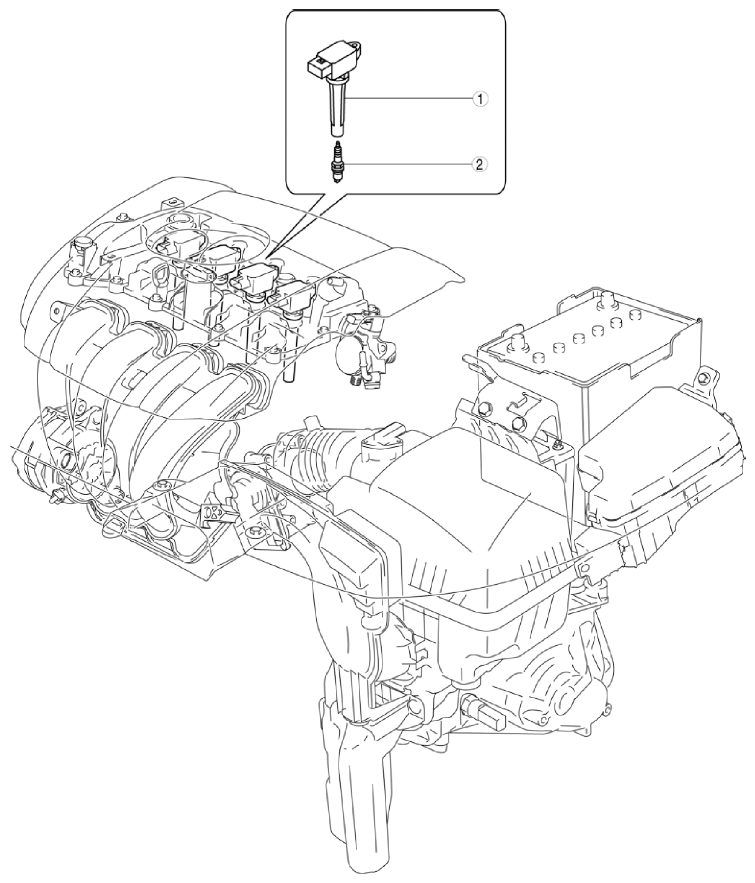

Fig 1: Ignition System Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .) (See IGNITION COIL INSPECTION [SKYACTIV-G 2.5] .)
2	Spark plug (See SPARK PLUG REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .) (See SPARK PLUG INSPECTION [SKYACTIV-G 2.5] .)
