Indicator Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

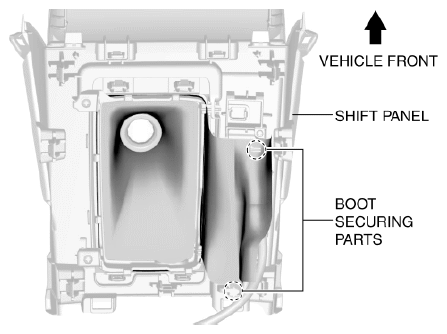

Turn over the removed shift panel and remove the boots from the securing parts shown in the figure.

Fig 1: Removing Boots From Securing Parts
Courtesy of MAZDA MOTORS CORP.

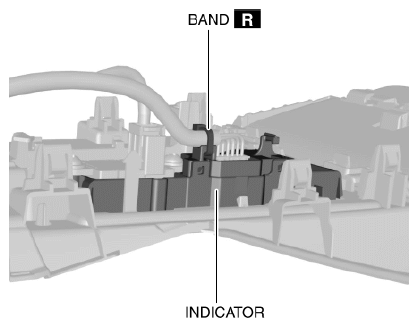

Cut the band shown in the figure.

Fig 2: Identifying Indicator And Band
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.
Install in the reverse order of removal.

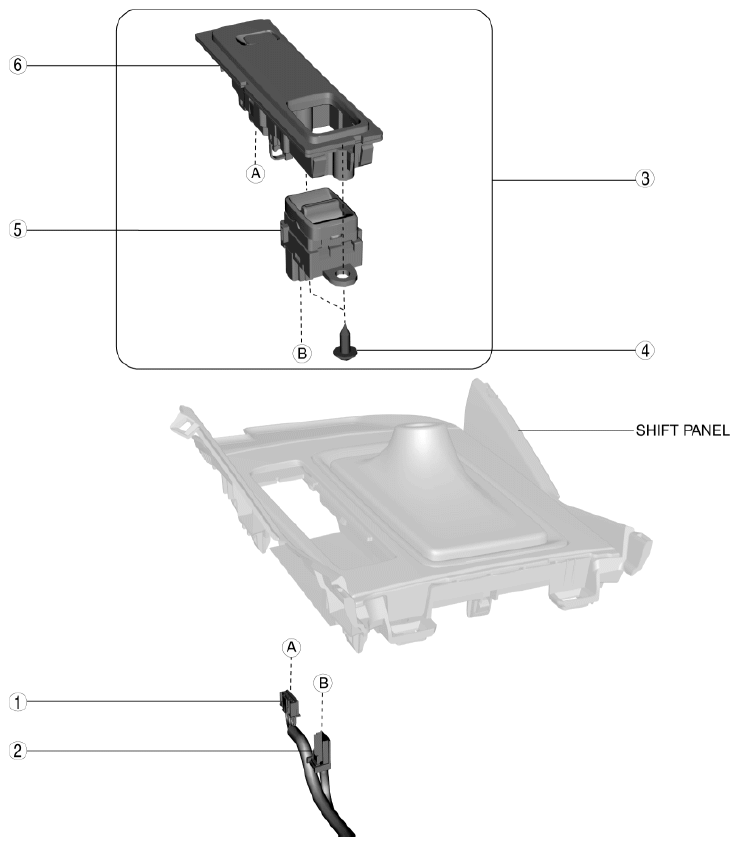

Fig 3: Shift Panel Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Indicator connector
2	Drive selection switch connector
3	Indicator component
4	Screw
5	Drive selection switch
6	Indicator
