Manifold Absolute Pressure (Map) Sensor/Intake Air Temperature (IAT) Sensor No. 2 Removal/Installation

NOTE:

Because the IAT sensor No. 2 is integrated in the MAP sensor, replacing the IAT sensor No. 2 includes replacement of the MAP sensor/IAT sensor No. 2.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the MAP sensor/IAT sensor No. 2 connector.
Remove the screw.

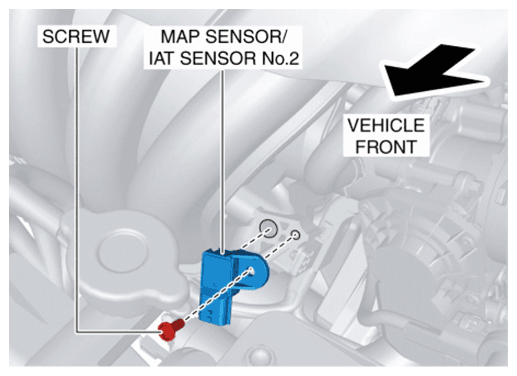

Fig 1: Removing MAP Sensor/IAT Sensor Screw
Courtesy of MAZDA MOTORS CORP.
Remove the MAP sensor/IAT sensor No. 2.
Install in the reverse order of removal.
