A/F sensor heater control signal

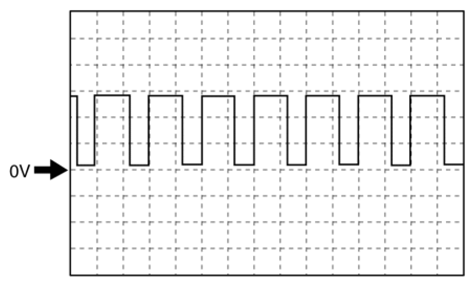

Fig 1: A/F Sensor Heater Control Signal Voltage Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1 BY(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
