Fuel injection control (+) signal

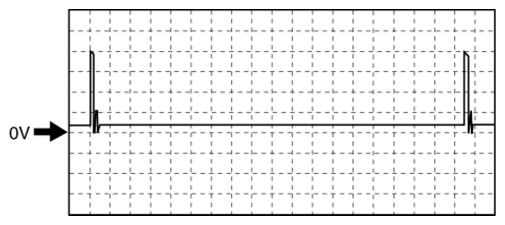

Fig 1: Fuel Injection Control Positive Signal Voltage Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• Fuel Injection No. 1: 1DP(+)-body ground(-)
• Fuel Injection No. 2: 1DX(+)-body ground(-)
• Fuel Injection No. 3: 1EB(+)-body ground(-)
• Fuel Injection No. 4: 1DT(+)-body ground(-)

Oscilloscope setting

• 10 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
