Generator field coil control signal

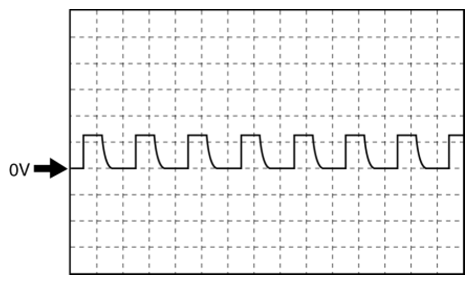

Fig 1: Generator Field Coil Control Signal Voltage Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1 BE(+)-body ground(-)

Oscilloscope setting

• 1 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
