Fuel Pump Cap Removal Note

CAUTION:
  • The fuel pump cap could be damaged if the SST (wrench) is used with any gap between the cap and the SST (wrench). Securely attach the SST (wrench) so that there is no gap between the SST (wrench) tabs and the side of the cap.
  1. Remove the fuel pump cap using the SST (wrench)  .

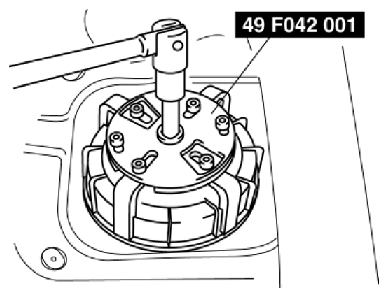

Fig 1: Removing Fuel Pump Cap Using SST (Wrench)
G10968870Courtesy of MAZDA MOTORS CORP.
