Control System Diagram

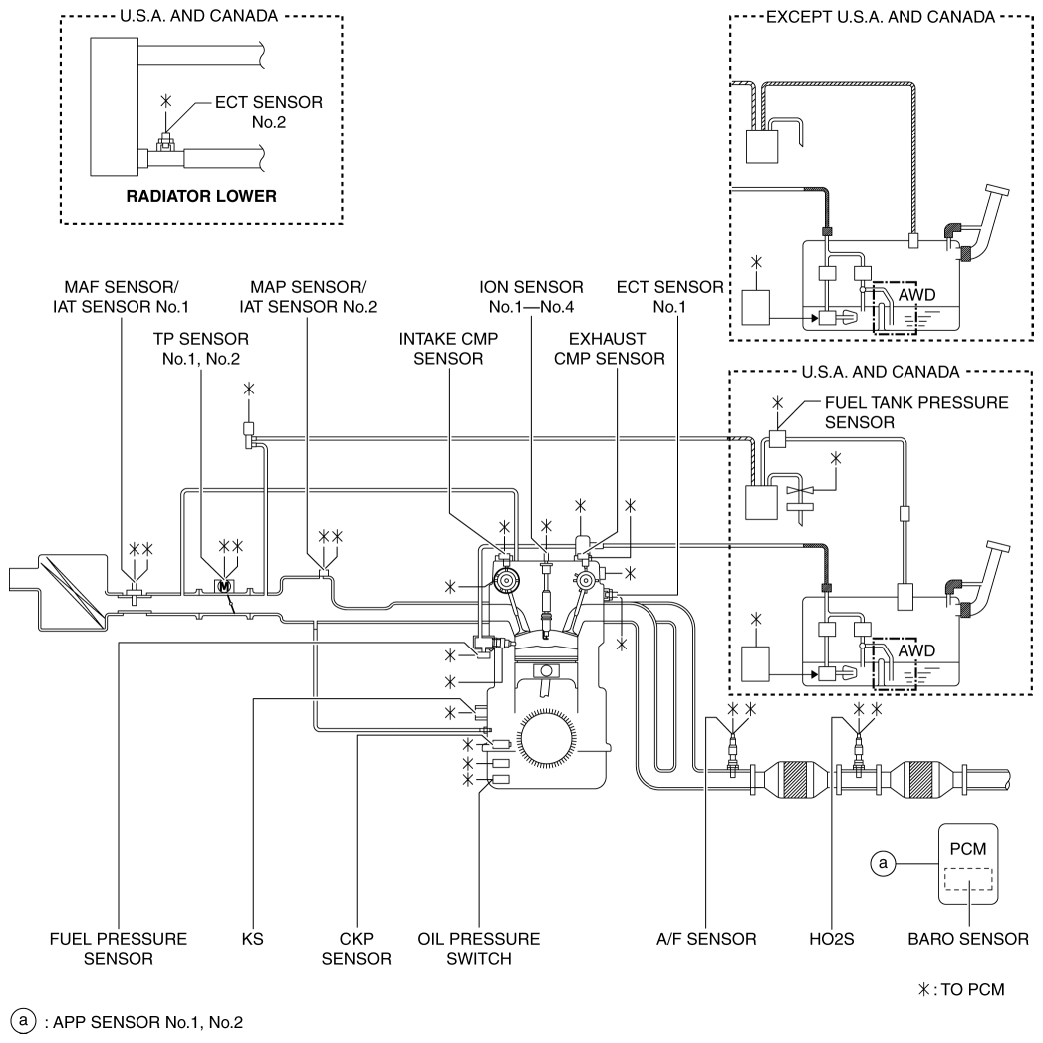

Fig 1: Engine Control System Schematic Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
