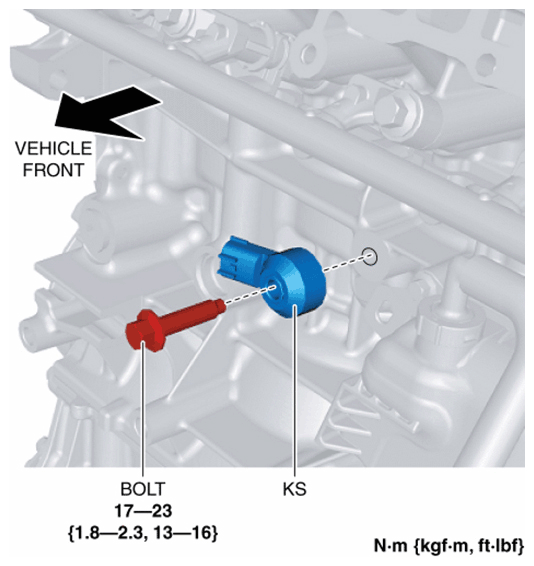

Knock Sensor (KS) Removal/Installation: Notes
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the intake manifold. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the KS connector.
- Remove the bolt.
- Remove the KS. (Refer to KS Installation Note .)
- Install in the reverse order of removal.
