Ignition Coil/Ion Sensor Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the procedure.
  4. Install in the reverse order of removal.

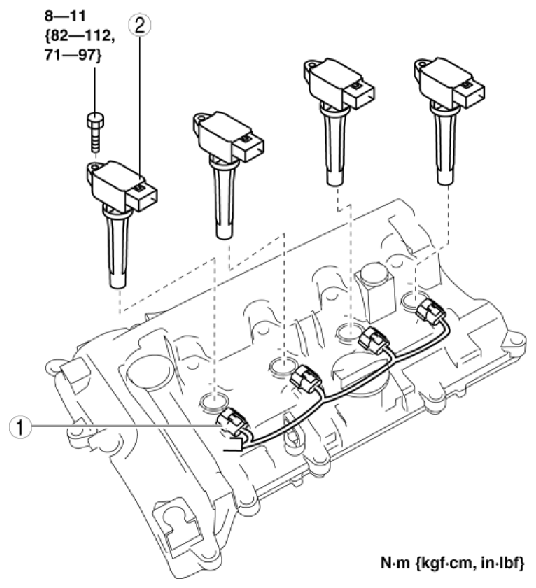

    Fig 1: Ignition Coil/Ion Sensor Components With Torque Specifications
    G10969018Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Connector
    2 Ignition coil/ion sensor
