PID/DATA Monitor Inspection

1. Connect the M-MDS to the DLC-2.
2. Switch the ignition ON (engine off).
3. Verify that the clutch stroke sensor output voltage (PID: CPP) within the specification. (See ON-BOARD DIAGNOSTIC TEST .) (See PCM INSPECTION .)
   • If not within the specification, replace the clutch master cylinder. (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [C66M-R] .)

Specification

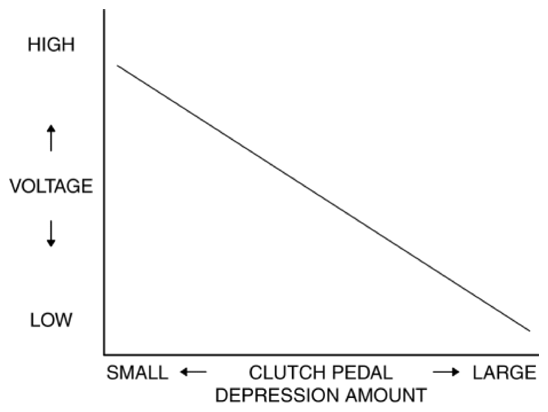

Fig 1: Clutch Stroke Sensor Output Voltage Graph

Courtesy of MAZDA MOTORS CORP.
