Hose Connection Note

  1. Align the white marks on the hose with the white marks on the pipe and connect them.

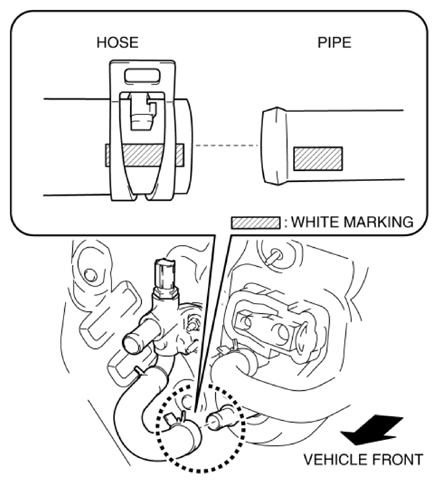

Fig 1: Identifying Marks On Hose And Pipe
G10916567Courtesy of MAZDA MOTORS CORP.
