Teflon Seal Installation Note

NOTE:

Apply engine oil to the SST.

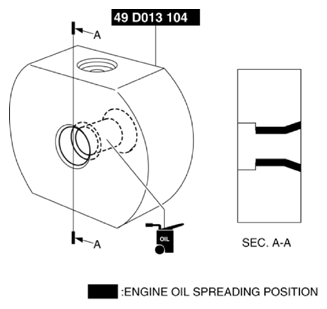

Fig 1: Applying Engine Oil To SST
Courtesy of MAZDA MOTORS CORP.
Install the SST with the mark on the SST facing the fuel injector.

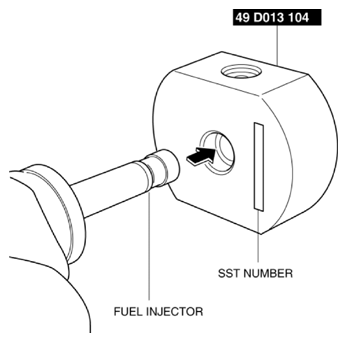

Fig 2: Installing Fuel Injector In SST
Courtesy of MAZDA MOTORS CORP.
Insert a new teflon seal onto the SST.

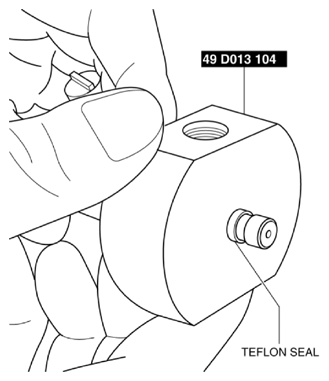

Fig 3: Inserting Teflon Seal Onto SST
Courtesy of MAZDA MOTORS CORP.
Install the SST equipped with the teflon seal to the end of the fuel injector.

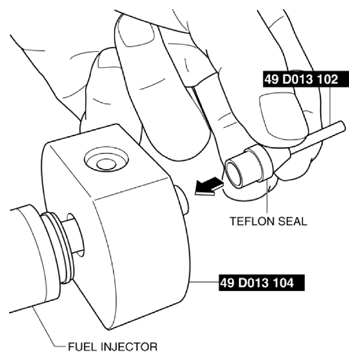

Fig 4: Installing SST Equipped With Teflon Seal To End Of Fuel Injector
Courtesy of MAZDA MOTORS CORP.
Using the SST, press on the teflon seal to the fuel injector side.

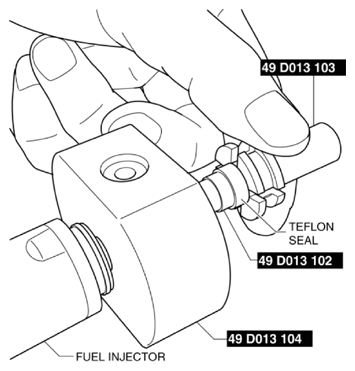

Fig 5: Pressing Teflon Seal To Fuel Injector Side Using SST
Courtesy of MAZDA MOTORS CORP.
Press on the teflon seal to the position indicated in the figure, then remove the SST.

Fig 6: Pressing Teflon Seal
Courtesy of MAZDA MOTORS CORP.
Install the teflon seal to the fuel injector by hand and remove the SST.

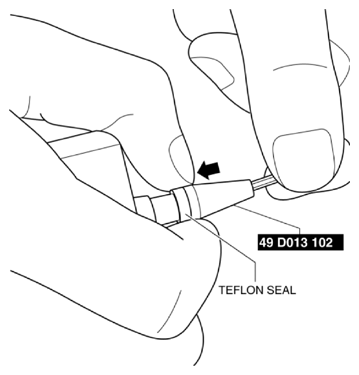

Fig 7: Installing Teflon Seal To Fuel Injector
Courtesy of MAZDA MOTORS CORP.
Slide the SST to the end of the fuel injector.

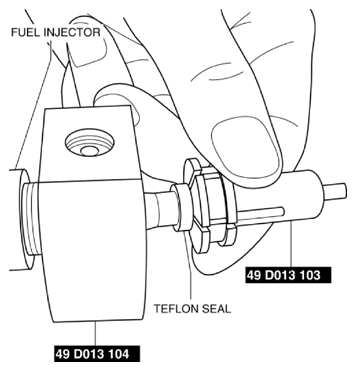

Fig 8: Sliding SST To End Of Fuel Injector
Courtesy of MAZDA MOTORS CORP.
Hold the SST at the position shown in the figure and correctly position the teflon seal for more than 30 sec.

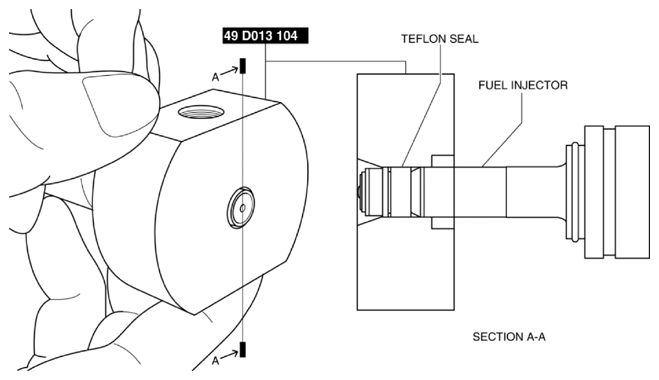

Fig 9: Positioning Teflon Seal
