Fuel Pump Control Module Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Tip the rear seat (LH).
Disconnect the clip connected to trunk board.
Disconnect the fuel pump control module connector.
Remove the fuel pump control module.

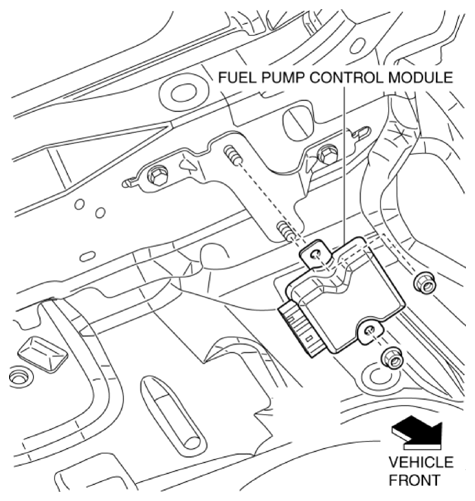

Fig 1: Identifying Fuel Pump Control Module With Nuts
Courtesy of MAZDA MOTORS CORP.
Install the fuel pump control module using the following procedure.
1. Insert the bracket tabs into the installation holes in the order shown in the figure.

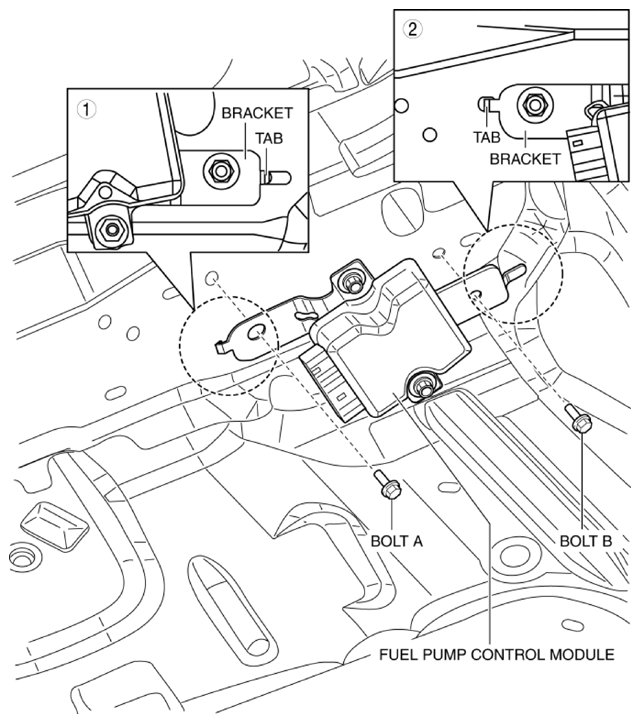

  Fig 2: Inserting Bracket Tabs Into Installation Holes
  Courtesy of MAZDA MOTORS CORP.
2. Temporarily tighten bolt A.
3. Temporarily tighten bolt B.
4. Tighten bolts A and B to the specified torque.
  Tightening torque
  - 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install in the reverse order of removal.
