Fuel System Flow Diagram

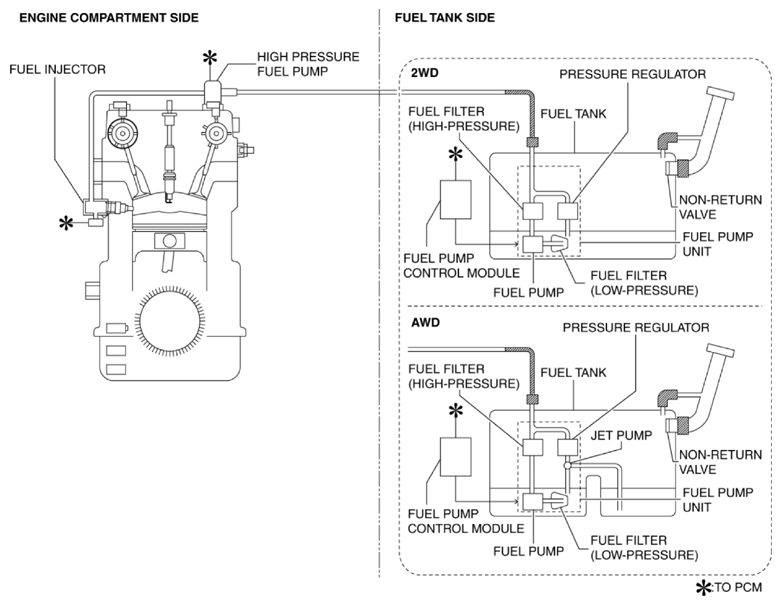

Fig 1: Fuel System Flow Diagram (SKYACTIV-G 2.0 And SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
