U.S.A. And CANADA: Notes
- Level the vehicle.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Drain the fuel. (See FUEL DRAINING PROCEDURE .)
- Open the fuel-filler lid.
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.

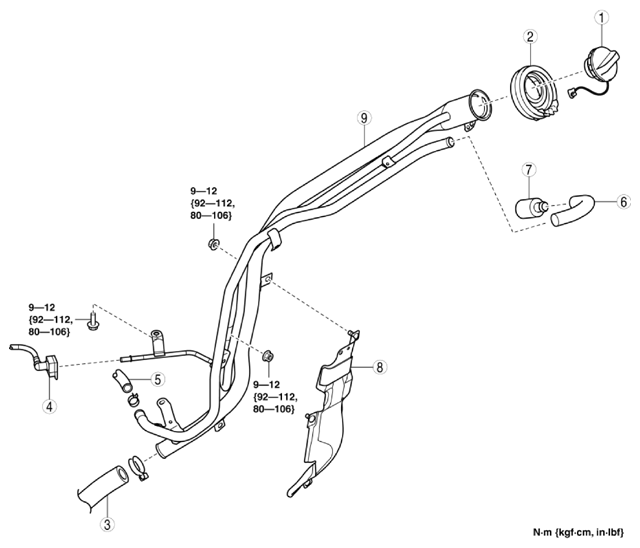

COMPONENT DESCRIPTION1 Fuel-filler cap 2 Dust cover
(See Dust cover removal note .)3 Joint hose
(See Joint hose installation note .)4 Quick release connector
(See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0. SKYACTIV-G 2.5] .)5 Evaporative hose No. 1 6 Evaporative hose No. 2 7 Plug 8 Fuel-filler pipe protector 9 Fuel-filler pipe
(See Fuel-filler pipe removal note .) - Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
