Fuel Pump Unit Removal/Installation

WARNING:

Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the "FUEL LINE SAFETY PROCEDURE ", while referring to "BEFORE SERVICE PRECAUTION".
A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

CAUTION:

Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Using the following procedure:
CAUTION:
- Because the fuel surface is higher than the fuel pump unit installation surface, if the set plate is removed, it may result in fuel leakage. If the fuel gauge level indicates 1/2 or more, refer to the fuel draining procedure and drain 20 liters of fuel.
Fuel gauge indicates 1/2 or more
- Drain the fuel. (See FUEL DRAINING PROCEDURE .)
Fuel gauge indicates less than 1/2
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following part:
6:4 split type
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
4:2:4 split type
- Set the rear seat aside as shown in the figure. (See REAR SEAT REMOVAL/INSTALLATION .)

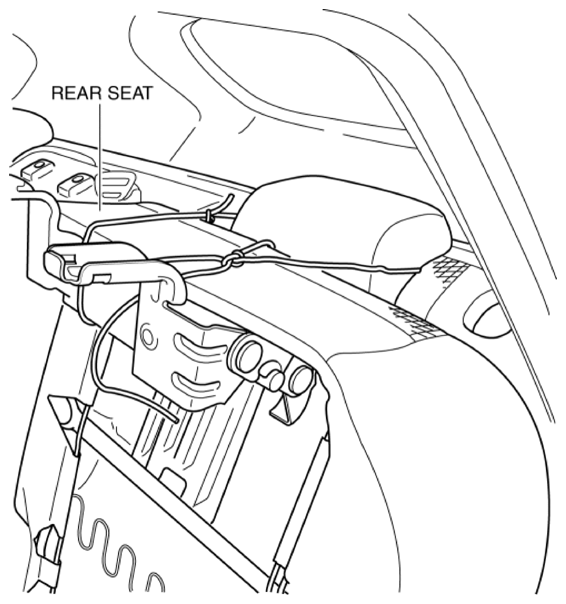

Fig 1: Identifying Rear Seat
Courtesy of MAZDA MOTORS CORP.
Partially peel back the floor mat as shown in the figure.

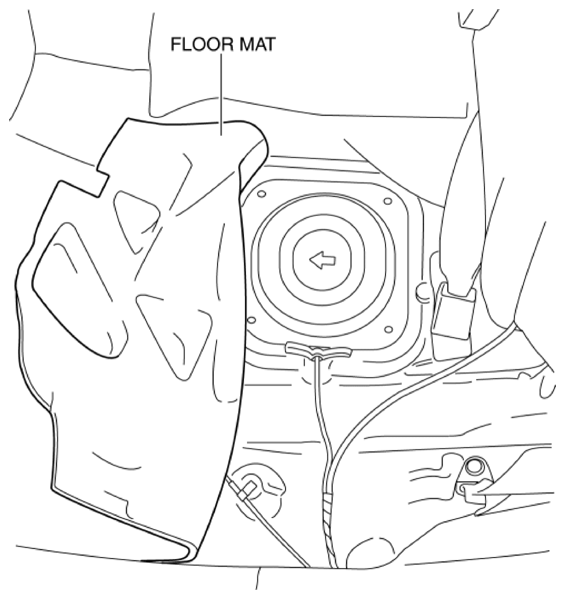

Fig 2: Identifying Floor Mat
Courtesy of MAZDA MOTORS CORP.
Remove the service hole cover.

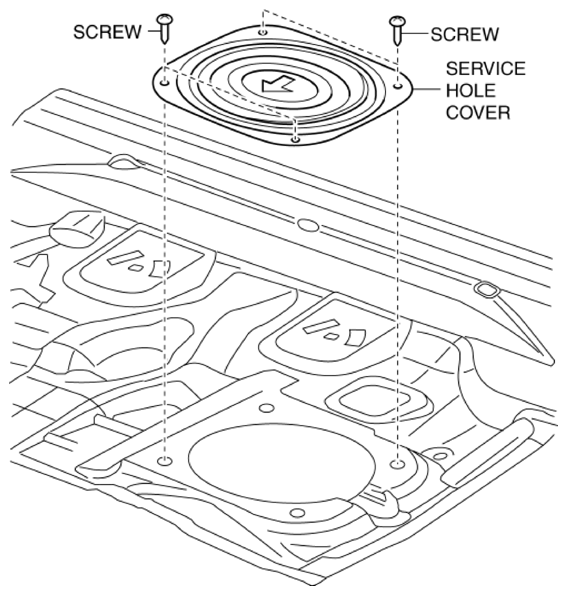

Fig 3: Identifying Service Hole Cover And Screws
Courtesy of MAZDA MOTORS CORP.
Set the pressure control valve out of the way (U.S.A. and CANADA). (See FUEL TANK REMOVAL/INSTALLATION )

Remove in the order indicated in the table.

2WD

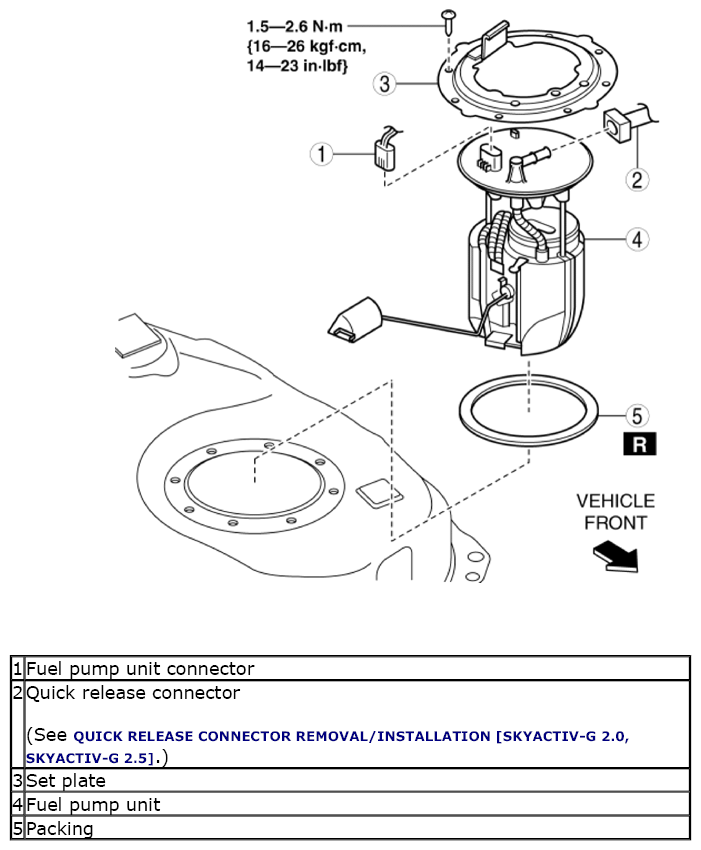

Fig 4: Identifying Fuel Pump Unit Related Components With Torque Specification (2WD)

Courtesy of MAZDA MOTORS CORP.

AWD

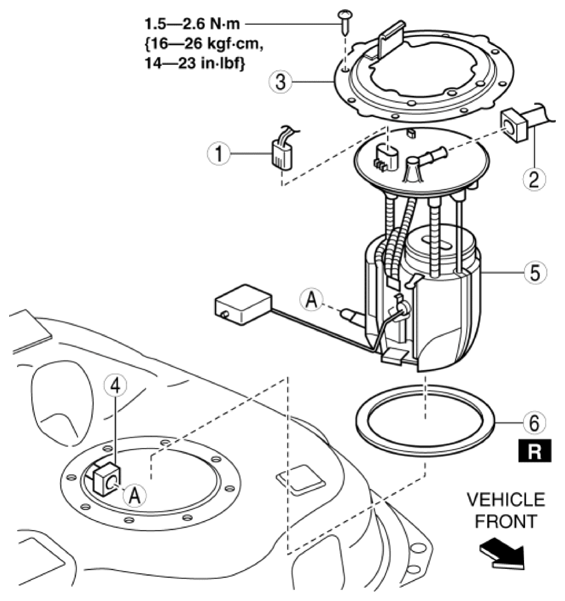

Fig 5: Fuel Pump Unit Related Components With Torque Specification (AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel pump unit connector
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
3	Set plate
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
5	Fuel pump unit
6	Packing
