Control System Device And Control Relationship Chart

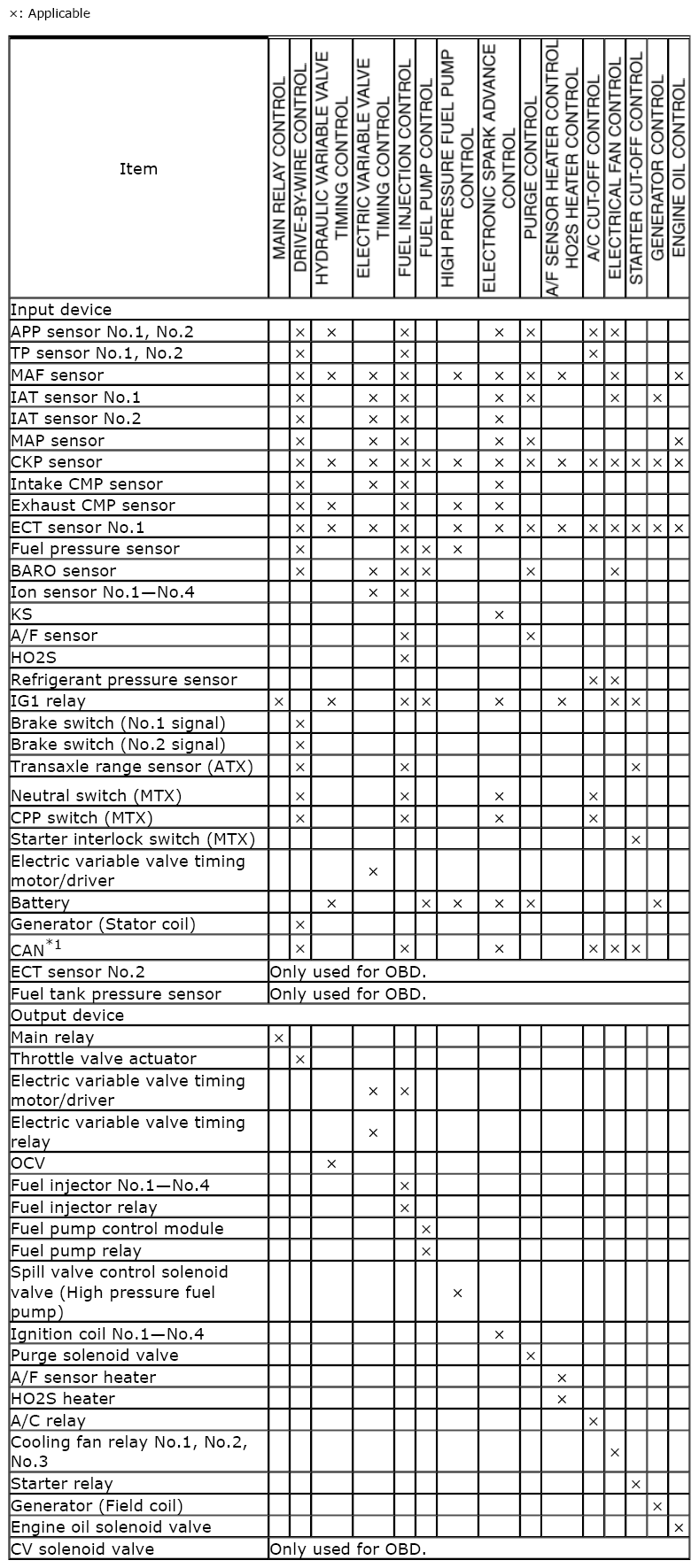

Fig 1: Control System Device And Control Relationship Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
*1
TCM (ATX), DSC HU/CM, Instrument cluster, start stop unit
Courtesy of MAZDA MOTORS CORP.
